SVM. SRM. DVRS SYSTEM
주행 . 주차 지원 통합 서비스
| CATEGORY | ITEM | SPECIFICATION |
|---|---|---|
| CAMERA | CAMERA | Hd Cmos |
| Sensor Format | 1/3 Inch | |
| Resolution | 1280 * 672 @ 60Fps | |
| Pixel Size | 3.75um * 3.75um | |
| Fov(H) | 52° | |
| lens F- Number | F2.0 | |
| Video Output | Yuv 422 1280*672 @60Fps | |
| View Mode | front View |
NIGHT VISION CAMERA
| ITEM | SPECIFICATION | |
|---|---|---|
| Camera Performance |
Image sensor | MLX75411 |
| Optical Format | 1/4inch | |
| Resolution | 1024(H) x 512(V) | |
| View angle | D20˚(H16) | |
| Lens construction | 4~5 Glass, Visual/IR Pass 31mmx16mmx25mm(W x H x D) | |
| Module size | 3~150m | |
| ECU Performance |
Detectable distance | (IP pass band:800~1000nm) |
| Warning | Present and warn pedestrians or vehicles ahead | |
| ECU housing | Fix both of camera and ECU | |
| Applications(Purposes) | Vehicle, Security, Military, Drone | |

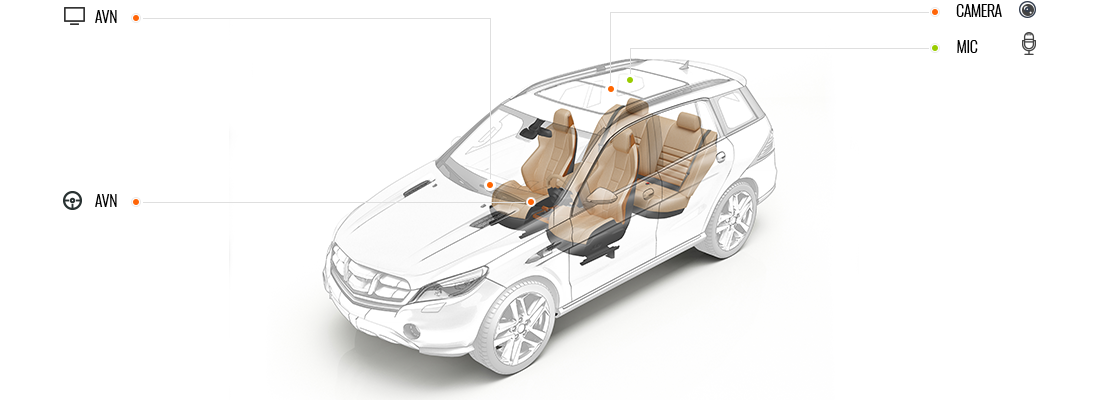

IN CABIN CAMERA
RGB. IR CAMERA
| FEATURES | |
|---|---|
| ITEM | RGB-IR CAMERA |
| Sensor | 1MEGA(RGB-IR) |
| Output Data | POC |
| Resolution | 1280 x 720p |
| IR LED | 940nm |
| Operating | DC 12V ± 0.5V |
